1992 OLDMOBILE CUTLASS SUPREME SL

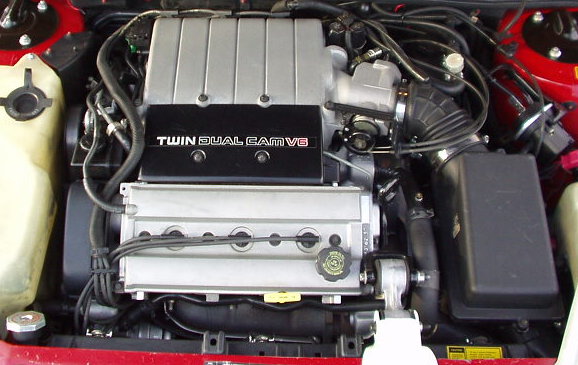

ENGINE
Type: 60 degree transverse, 3.4 liter Twin DOHC MPFI V6
RPO Code: LQ1, VIN Code 'X'
Displacement: 207 cu in, 3352 cc
Valves: 24 valve, 2 intake/exhaust per cylinder
Bore & Stroke: 3.622 (92 MM) x 3.3122 in (84 MM)
Compression Ratio: 9.25:1
Firing Order: 1-2-3-4-5-6
Coil Connection Sequence: 1-4-6-3-2-5
Horsepower: 200 bhp @ 5000 RPM
Torque: 210 ft/lbs @ 4500 RPM
Yellowline: 6500 RPM
Redline: 7000+ RPM
Fuel Economy (city/highway) : 19/28 mpg
 SUSPENSION
Front: independent, MacPherson struts located by lower control arm, tapered coil springs, 34mm anti-roll bar
Rear: independent, tubular strut located by 1 trailing link and 2 lateral links, l4mm anti-roll bar
STEERING
Type: power assisted, rack-and-pinion
Turning Ratio: constant, 14.0:1
BRAKES
Type: four wheel disc / NO ABS
Front: 10.5 x 1.0in vented disc
Rear: 10.1 x 0.5in solid disc
Power assist: hydraulic
WHEELS AND TIRES
Wheel size: 16.0 x 6.5 in
Wheel style: 5 spoke straight star
Wheel type: one piece cast aluminum
Tires: Phantom HRX's (P225/60-R16 97H)
TIMES AND SPEED
0 - 60mph Time: 7.9 seconds
Quarter Mile: 17.391 @ 82.29mph
(my time: stock @ 5400 ft above sea level)
Top Speed: estimated around 123mph (limiter)
|  |
|
TRANSMISSION
GM Name: Hydra-Matic 4T60-E
Type: 4-Speed Automatic W/ Overdrive
Chassis (motor / driveline): Front / 2WD Front
Gear Ratio First: 2.921
Gear Ratio Second: 1.568
Gear Ratio Third: 1.000
Gear Ratio Fourth: 0.705
Gear Ratio Reverse: 2.385
|
|
|
EXTERIOR DIMENSIONS
Wheelbase: 107.5 in
Track (front/rear): 59.5 / 58.0 in
Length: 194.8 in
Width: 71.9 in
Height: 53.3 in
Ground Clearance (minimum): 5.9 in
Curb Weight: 3396 - 3511 lb
INTERIOR DIMENTIONS
Type: 5 passenger coupe / sedan
Front Seats: sport cloth buckets, 6-way power driver seat
Front Head Room: 37.8 in
Front Leg Room: 42.3 in
Front Shoulder Room: 57.3 in
Front Hip Room: 52.0 in
Back Seats: sport cloth benchseat with 3-point seatbelts
Rear Head Room: 36.6 in
Rear Leg Room: 34.8 in
Rear Shoulder Room: 57.3 in
Rear Hip Room: 53.3 in
Trunk Cargo Space: 15.0 cu ft
CAPACITIES
Engine Crankcase: 5.5 quarts with oil filter
Transaxle (auto / manual): 9-12 pints / 2.25 quarts
Cooling System (auto / manual): 12.7 quarts / 12.9 quarts
Refrigerant (R-12), Air Conidtioning: 2.25 lbs
Fuel Tank: 16.5 gallons
|
|
